Product Summary
The TLOU1008A is a SMT LED designed for backlighting for battery−powered equipment, pilot light for compact equipment, low−power electronic equipment and so on.
Parametrics
Maximum ratings (Ta=25℃): (1)Forward Current, IF: 25mA; (2)Reverse Voltage, VR: 4V; (3)Power Dissipation, PD: 62mW; (4)Operating Temperature, Topr: -30 ~ 85℃; (5)Storage Temperature, Tstg: -30 ~ 85℃.
Features
Features: (1)1.6 x 0.8 x 0.6 mm (L x W x H); (2)InGaAlP Technology; (3)Reflow Soldering is possible; (4)Standard embossed taping 2 mm pitch : T05 (8000 pcs/reel); (5)0603 Surface Mount Package.

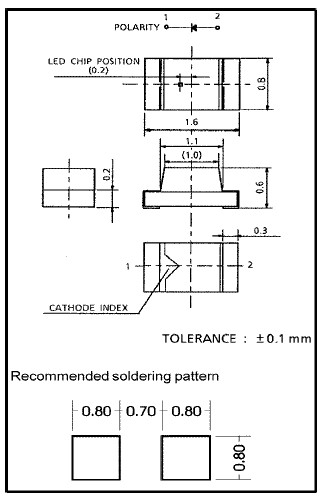

Diagrams
 |
