Product Summary

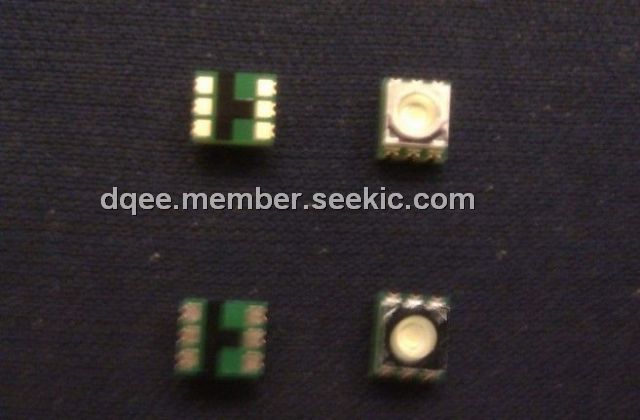

The 59-23BUWD/TR8 is a Luminosity white Color LED. It is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained.

Parametrics

Absolute maximum ratings: (1)Reverse Voltage:5V ; (2)Operating Temperature:-25℃ to +80℃ ; (3)Storage Temperature:-40℃ to +90℃ ; (4)Soldering Temperature:260(for 5 second)℃ ; (5)Electrostatic Discharge:1000V ; (6)Power Dissipation:111mW ; (7)Forward Current:30mA ; (8)Peak Forward Current(Duty 1/10 @ 400ms):100mA.

Features

Features: (1)Super luminosity white LED; (2)Built in 3 LED chips; (3)Wide viewing angle; (4)Soldering methods: Reflow soldering; (5)High performance; (6)Package in 12mm tape on 7〞diameter reel; (7)Pb-free.

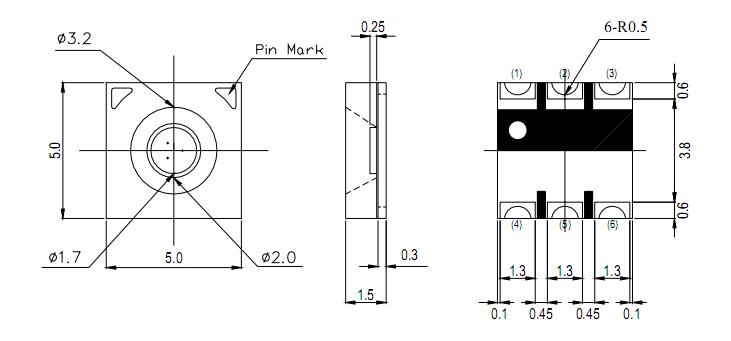

Diagrams

59-213
59-213

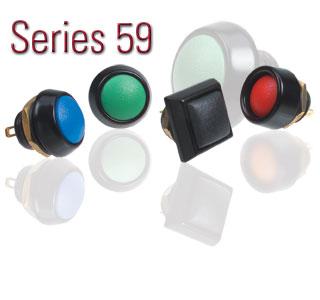

ITW Switches
