Product Summary

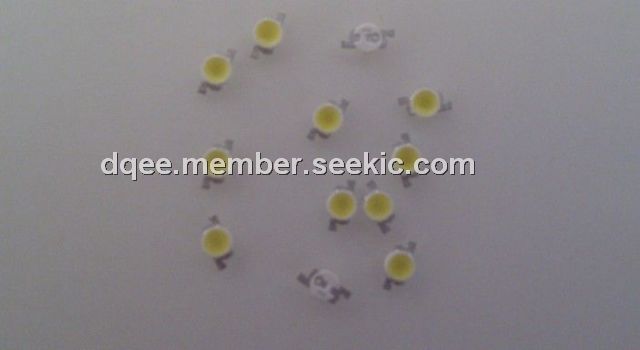

The LWP473 is a White Hyper-Bright LED.

Parametrics

Absolute maximum ratings: (1)Operating temperature range: -40 to +100 ℃; (2)Storage temperature range: -40 to +100 ℃; (3)Junction temperature: +110 ℃; (4)Forward current: 20 mA; (5)Surge current t ≤ 10 μs, D = 0.1: 200 mA; (6)Reverse voltage: 5 V; (7)Power consumption TA ≤ 25 ℃: 80 mW.

Features

Features: (1)package: white SMT package, colored diffused resin; (2)feature of the device: top mount or reverse mount; ideal for extremely flat backlight; (3)color coordinates: x = 0.32, y = 0.31 acc. to CIE 1931 (white); (4)typ. color temperature: 6200 K; (5)color reproduction index: 80; (6)viewing angle: Lambertian Emitter (120?; (7)technology: InGaN; (8)optical efficiency: 9 lm/W.

Diagrams
