Product Summary

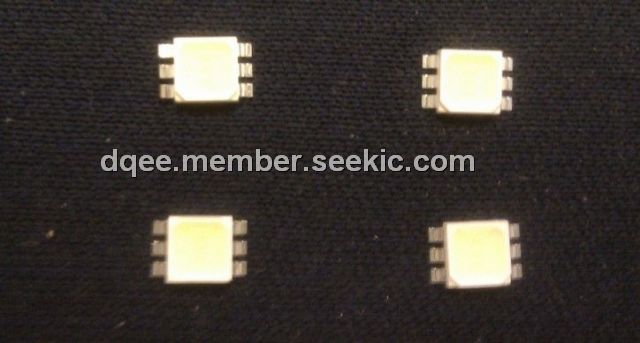

The AAAF5051 is a 5.0mm x 5.0mm full-color surface mount LED lamp.
Parametrics
Absolute maximum ratings: (1)Junction temperature:110℃ ; (2)Operating Temperature:-40℃ to +85℃; (3)Storage Temperature:-40℃ to +85℃; (4)DC forward current:120mA; (5)Peak forward current:300mA; (6)Electrostatic Discharge Threshold (HBM):8000V.
Features
Features: (1)chips can be controlled separately; (2)suitable for all smt assembly and solder process; (3)available on tape and reel; (4)white smd package, silicone resin; (5)package: 500pcs / reel ; (6)moisture sensitivity level : level 3; (7)rohs compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AAAF5051-02 |
Kingbright |
High Power LEDs - Multi-Color RGB Full Color 5.0X5.0mm |
Data Sheet |
Negotiable |
|
||||||||||||
 |
AAAF5051-03 |
Kingbright |
High Power LEDs - Multi-Color RGB 624/525/450nm 9K/20K/4500 mcd |
Data Sheet |
|
|
||||||||||||
