Product Summary

The PDA54-11SRWA is a super bright red source color device. It is made with Gallium Aluminum Arsenide Red Light Emitting Diode.

Parametrics

Absolute maximum ratings: (1)Power dissipation: 100 mW; (2)DC Forward Current: 30 mA; (3)Peak Forward Current: 155 mA; (4)Reverse Voltage: 5 V; (5)Operating/Storage Temperature: -40℃ To +85℃; (6)Lead Solder Temperature: 260℃ For 3 Seconds.

Features

Features: (1)0.54 inch character height; (2)low current operation; (3)high contrast and light output; (4)easy mounting on p.c. boards or sockets; (5)categorized for luminous intensity; (6)mechanically rugged; (7)standard : gray face, white segment; (8)RoHS compliant.

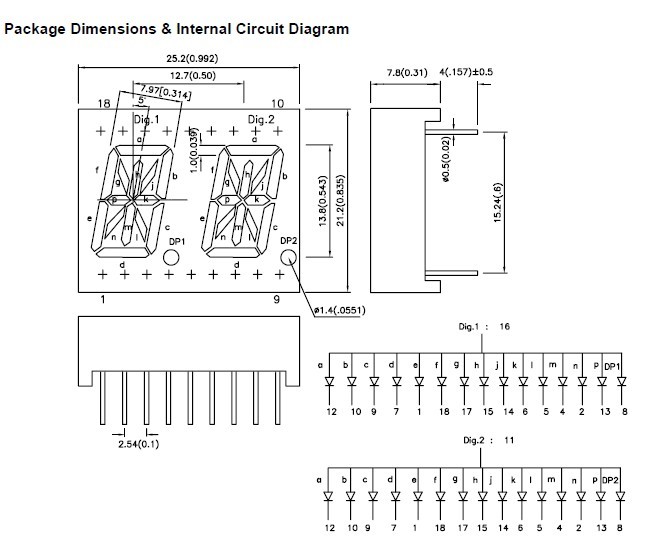

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PDA54-11SRWA
PDA54-11SRWA
Kingbright
LED Displays & Accessories RED DIFFUSED 2 DIGIT ALPHA
Data Sheet
0-1: $2.23
1-10: $2.06
10-100: $2.04
100-200: $1.90
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PDA54-11SRWA
PDA54-11SRWA
Kingbright
LED Displays & Accessories RED DIFFUSED 2 DIGIT ALPHA
Data Sheet
0-1: $2.23
1-10: $2.06
10-100: $2.04
100-200: $1.90
PDA54-12EWA
PDA54-12EWA
Kingbright
LED Displays & Accessories HI EFF RED DIFFUSED 2 DIGIT ALPHA
Data Sheet
0-1: $1.99
1-10: $1.84
10-100: $1.82
100-200: $1.70
PDA54-12GWA
PDA54-12GWA
Kingbright
LED Displays & Accessories GREEN DIFFUSED 2 DIGIT ALPHA
Data Sheet
0-1: $1.99
1-10: $1.84
10-100: $1.82
100-200: $1.70
PDA54-12SRWA
PDA54-12SRWA
Kingbright
LED Displays & Accessories SUPER RED DIFFUSED 2 DIGIT ALPHA
Data Sheet
0-1: $2.23
1-10: $2.06
10-100: $2.04
100-200: $1.91
PDA54-12YWA
PDA54-12YWA
Kingbright
LED Displays & Accessories YELLOW DIFFUSED 2 DIGIT ALPHA
Data Sheet
0-1: $1.30
1-10: $1.23
10-100: $1.19
100-200: $1.15
PDA54-11EWA
PDA54-11EWA
Other

Data Sheet
Negotiable
