Product Summary

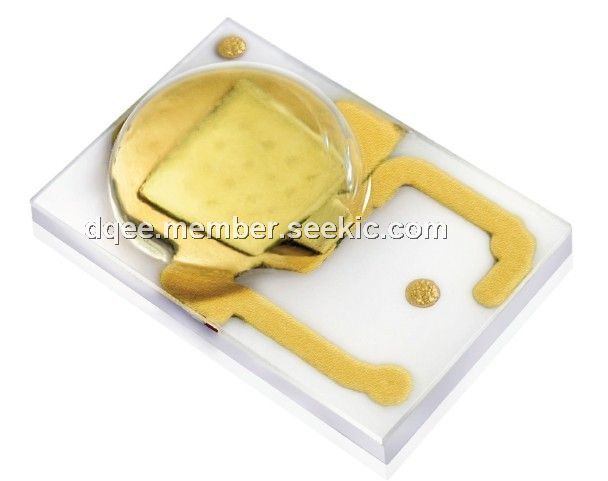

The LUXEON Rebel LXML-PWC1-0100 is an ultra-compact, surface-mount, high-power LED that delivers elevated standards for light output, flux density and manufacturability. Offering industryleading flux density, lumens per package and power handling capabilities, LUXEON Rebel enables you to create never before possible lighting applications.
Parametrics
Absolute maximum ratings: (1)DC Forward Current (mA): 1000 at Cool-White / Neutral-White / Warm-White / Green / Cyan / Blue / Royal-Blue; 700 at Red / Red-Orange / Amber; (2)Peak Pulsed Forward Current (mA): 1000 at Cool-White / Neutral-White / Warm-White / Green / Cyan / Blue / Royal-Blue; 700 at Red / Red-Orange / Amber; (3)Average Forward Current (mA): 1000 at Cool-White / Neutral-White / Warm-White / Green / Cyan / Blue / Royal-Blue; 700 at Red / Red-Orange / Amber; (4)ESD Sensitivity: < 8000V Human Body Model (HBM) Class 2 JESD22-A114-B < 400V Machine Model (MM) Class 2 JESD22-A115-B ; (5)LED Junction Temperature: 50℃; (6)Operating Case Temperature at 350mA: -40℃ to 135℃; (7)Storage Temperature: -40℃ to 135℃; (8)Soldering Temperature: JEDEC 020c 260℃; (9)Allowable Reflow Cycles: 3 ; (10)Autoclave Conditions: 121℃ at 2 ATM 100% Relative Humidity for 96 Hours Maximum.
Features
Features: (1)150℃ Junction Temperature; (2)Industry leading lumen performance, > 100 lumens in cool white at 350mA; (3)350mA-1000mA drive current; (4)High efficacy, flux density and lumens per package; (5)Industry best moisture sensitivity level-JEDEC Level 1 unlimited floor life-no need for reconditioning; (6)Leadfree reflow solder JEDEC 020c compatible; (7)RoHS Compliant; (8)Autoclave compliant-JESD22 A102; (9)Industry best lumen maintenance-50,000 hours life at 700 mA with 70% lumen maintenance; (10)Electrically isolated thermal pad; (11)Available in all colors.

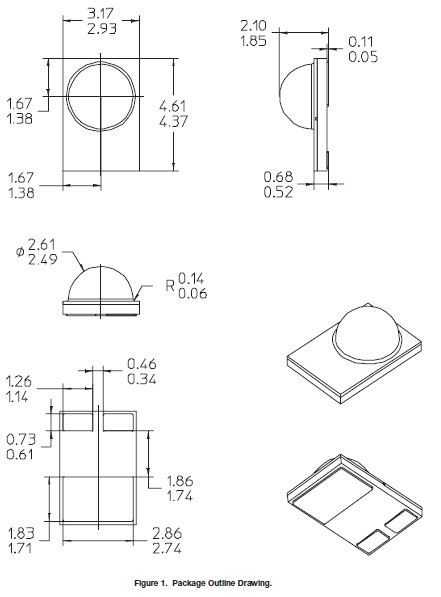

Diagrams
 |
 LXML0000 |
|
1 LPAX LABEL ML |
Data Sheet |
|
|
||||||
