Product Summary

The LUWW5PM is a golden dragon oval plus. It is suitable for Outdoor lighting: streets, tunnels, parking lots, pedestrian areas, public places, petrol stations, flood light and linear indoor applications: fluorescent replacement, floor lighting, retail/shop and office lighting.

Parametrics

Absolute maximum ratings: (1)Betriebstemperatur Operating temperature range, Top: -40 to + 125℃; (2)Lagertemperatur Storage temperature range, Tstg: -40 to+125℃; (3)Sperrschichttemperatur Junction temperature, Tj>150℃ for short term applications; (4)Sperrschichttemperatur Junction temperature, Tj: 125℃.

Features

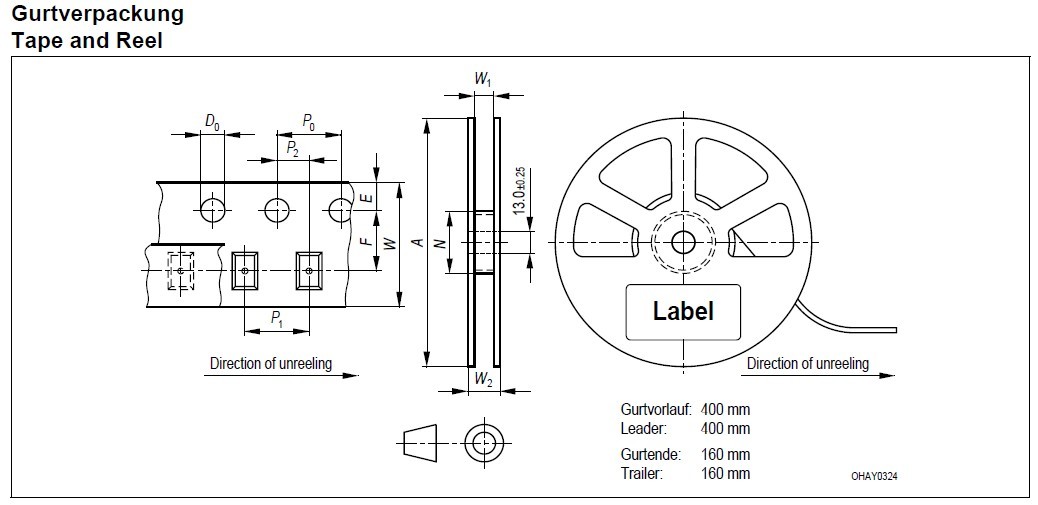

Features: (1)package: white SMD package with clear silicone lens; (2)typical Luminous Flux: 100 lm at 350 mA up to 225 lm at 1 A; (3)feature of the device: high efficient lightsource at low space; (4)color coordinates: x = 0.31, y = 0.32 acc. to CIE 1931 (white); (5)typ. color temperature: 6500 K; (6)viewing angle: horizontal 120°vertical 70°technology: ThinGaN; (7)optical efficiency: 110 lm/W at 100 mA; (8)grouping parameter: luminous flux, color coordinates; (9)assembly methods: suitable for SMT assembly methods; (10)soldering methods: reflow soldering; (11)preconditioning: acc. to JEDEC Level 4; (12)taping: 24 mm tape with 200/reel, ?80 mm; (13)ESD-withstand voltage: up to 2 kV acc. to JESD22-A114-D.
