Product Summary

The EDEW-1LA5 is a emitter which is one of the highest CRI (Typ. 90 to 95) and highest flux LEDs in the world by Edison Opto. Edixeon D series emitters are designed to satisfy more and more Solid-State lighting high CRI LED applications for commercial light, indoor and outdoor decoration light. Edixeon E series emitters are designed by particular package for high flux LED for neutral white and warm white. 1W Edixeon E series neutral white has typical 55 lumens at 350mA.

Parametrics

Absolute maximum ratings: (1)DC Forward Current, IF: 350 to 700mA ; (2)Peak pulse current(tp≦100μs, Duty cycle=0.25): 700 to 1,000mA; (3)Reverse Voltage, VR: 5V ; (4)Forward Voltage, VF: 5V ; (5)LED junctionTemperature ( at DC Forward Current ), TJ: 125℃ ; (6)Operating Temperature: -30 to +110℃; (7)Storage Temperature: -40 to +120℃; (8)ESD Sensitivity: 4,000 V; (9)Manual Soldering Time at 260℃(Max.): 5Sec.

Features

Features: (1)Various colors; (2)More energy efficient than incandescent and most halogen lamps; (3)Low voltage operation; (4)Instant light; (5)Long operating life; (6)High CRI: Typ. 90~95 for D series.

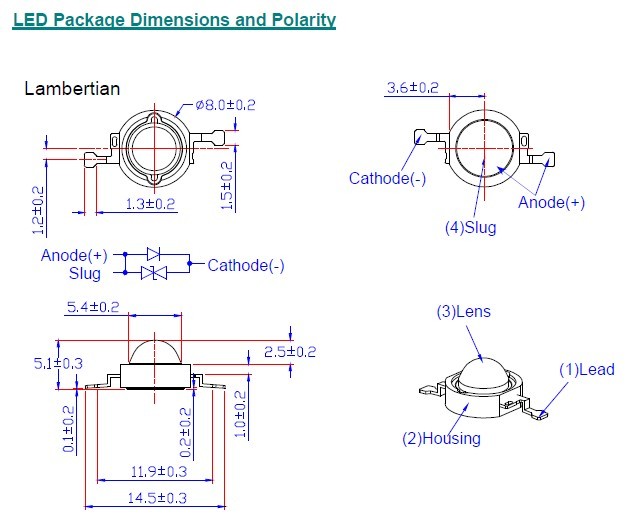

Diagrams
