Product Summary

The LWW5SM is a platinum dragon white with Chip Level Conversion (CLC).

Parametrics

Absolute maximum ratings: (1)Operating temperature range: -40 to +125℃; (2)Storage temperature range: -40 to +125℃; (3)Junction temperature >150 for short term applications; (4)Forward current: 1000 mA; (5)Thermal resistance: 11K/W.

Features

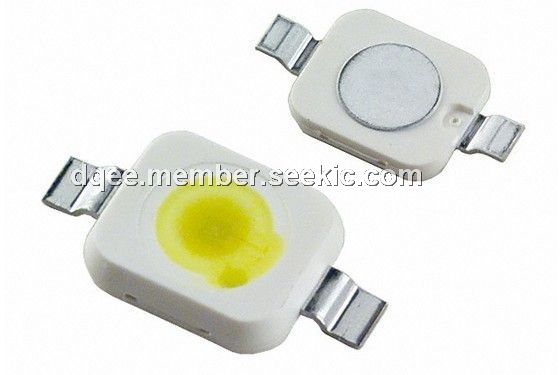

Features: (1)package: white SMD package, colorless clear silicone resin; chip level conversion; (2)typical Luminous Flux: 75 lm at 700 mA; (3)feature of the device: high efficient lightsource at low space; (4)color coordinates: x = 0.33, y = 0.33 acc. to CIE 1931 (white); (5)typ. color temperature: 5600 K; (6)color reproduction index: 80; (7)viewing angle: Lambertian Emitter (120?; (8)technology: ThinGa; (9)optical efficiency: 30 lm/W; (10)grouping parameter: luminous flux, color coordinates.

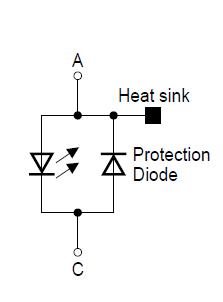

Diagrams
