Product Summary
The IRM-2638 are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The IRM-2638 is the standard IR remote control receiver series, supporting all major transmission codes.
Parametrics
Absolute maximum ratings: (1)Supply Voltage, Vcc: 0~6 V; (2)Operating Temperature, Topr: -25 ~ +80 ℃; (3)Storage Temperature, Tstg: -40 ~ +85 ℃; (4)Soldering Temperature, Tsol: 260 ℃.
Features
Features: (1)Photo detector and preamplifier in one package; (2)Internal filter for PCM frequency; (3)Improved shielding against electrical field disturbance; (4)TTL and CMOS compatibility; (5)Output active low; (6)Low power consumption; (7)Improved immunity against ambient light; (8)Suitable burst length ≧10 pulses/burst; (9)Pb free.

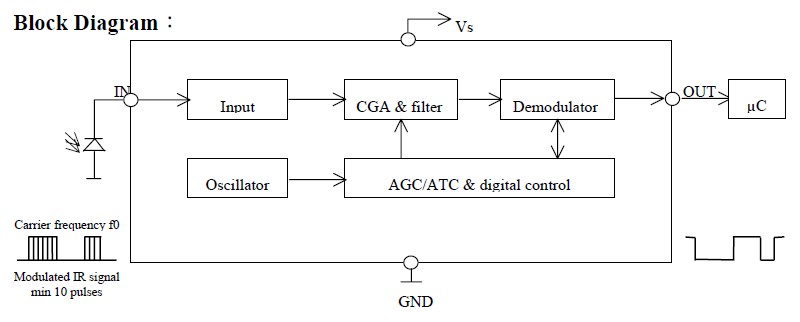

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRM-2638S36-P |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
IRM-2638T |
Everlight |
Infrared Receivers IR Receiver Module |
Data Sheet |
|
|
||||||||||||
 |
IRM-2638VS17 |
Everlight |
Infrared Receivers Infrared Remote |
Data Sheet |
|
|
||||||||||||
|
IRM-2638VF4 |
Everlight |
Infrared Receivers Infrared Remote |
Data Sheet |
Negotiable |
|
||||||||||||
|
IRM-2638S5F4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
IRM-2638S6F3 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
IRM-2638V |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
IRM-2638TF4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
