Product Summary

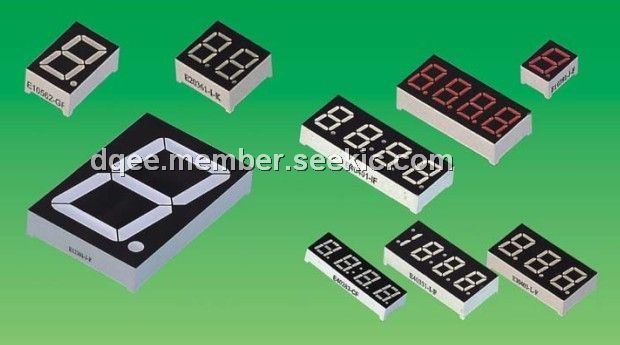

The LTC-4724JR is a 0.4inch(10.0mm)digit height triple digit seven-segment display. This device utilizes AIInGaP super red LED chips, which are made from AIInGaP on a non-transparent GaAs subsrate, and has a gray face and white segments.
Parametrics
Absolute maximum ratings: (1)power dissipation per segment: 70mW; (2)peak forward current per segment: 90mA; (3)continuous forward current per segment: 25mA; (4)derating linear from 25℃ per segment: 0.33mA/℃; (5)reverse voltage per segment: 5v; (6)opreating temperature range: -35 to +85℃; (7)storage temperature range: -35 to+85℃.
Features
Features: (1)0.4inch(10.0mm) digit height; (2)continuous uniform segments; (3)low power requirement; (4)excellent characters appearance; (5)high brightness & high contrast; (6)wide viewing angle; (7)sold state reliability; (8)categorized for luminous intensity.

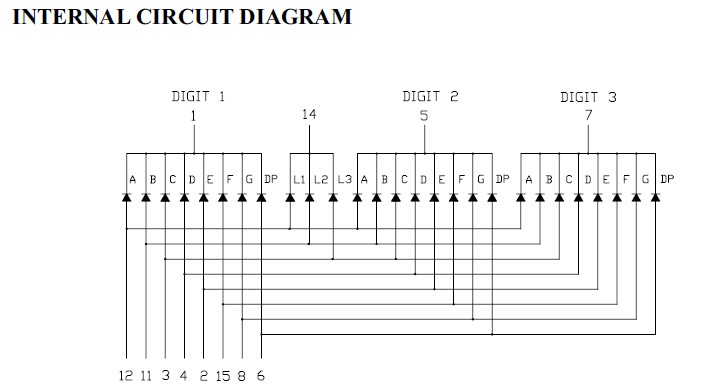

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC-4724JR |
Lite-On |
LED Displays & Accessories 3 Digit, Red Low Current |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |

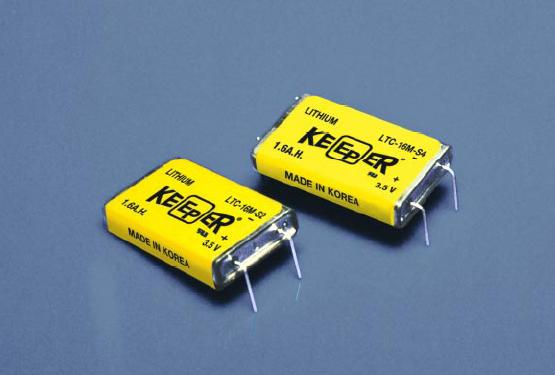

LTC-16M |
