Product Summary

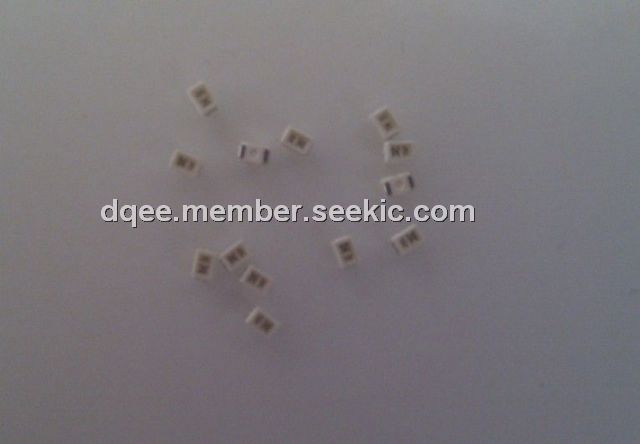

The LSM67K is a hyper-bright low current LED. It is widely used in indoor displays, optical indicators, coupling into light guides, backlighting (LCD, switches, keys, displays, illuminated advertising, general lighting), interior automotive lighting.

Parametrics

Absolute maximum ratings: (1)Betriebstemperatur Operating temperature range, Top: -40 + 100℃; (2)Lagertemperatur Storage temperature range, Tstg: -40 + 100℃; (3)Sperrschichttemperatur Junction temperature, Tj: +125℃; (4)Durchlassstrom Forward current, IF: 15mA.

Features

Features: (1)package: white SMT package; (2)feature of the device: small package 2.3 mm x 1.3 mm x 1.4 mm; (3)wavelength: 630 nm (super-red), 606 nm (orange), 587 nm (yellow); (4)technology: InGaAlP; (5)optical efficiency: 6 lm/W (yellow), 5 lm/W (super-red), 9 lm/W (orange); (6)grouping parameter: luminous intensity, wavelength; (7)assembly methods: suitable for all SMT assembly methods; (8)soldering methods: IR reflow soldering and TTW soldering; (9)preconditioning: acc. to JEDEC Level 2; (10)ESD-withstand voltage: up to 2 kV acc. to EOS/ESD-5.1-1993.

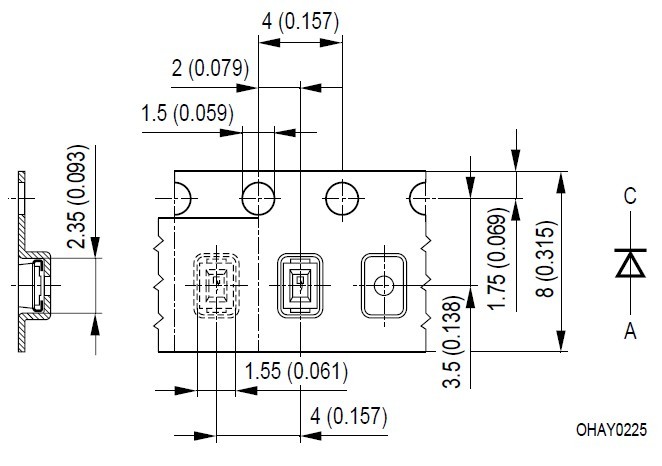

Diagrams

LSM676
LSM676
