Product Summary

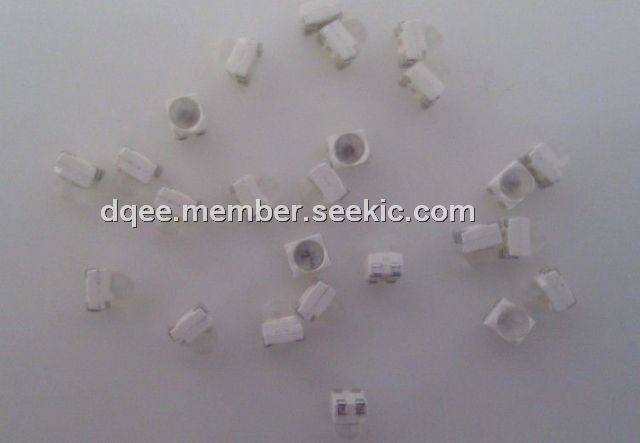

The LAE63F is a Hyper-Bright LED.

Parametrics

Absolute maximum ratings: (1)Operating temperature range: -40 to +100 ℃; (2)Storage temperature range: -40 to +100 ℃; (3)Junction temperature: +125 ℃; (4)Forward current: 70 mA; (5)Surge current t ≤ 10 μs, D = 0.1: 0.1 A; (6)Reverse voltage: 5 V; (7)Power consumption TA ≤ 25 ℃: 180 mW.

Features

Features: (1)package: white P-LCC-4 package; (2)feature of the device: more light due to higher optical efficiency; higher ambient temperature at the same current possible compared to TOPLED; (3)wavelength: 617 nm (amber); (4)viewing angle: Lambertian Emitter (120°); (5)technology: InGaAlP; (6)optical efficiency: 21 lm/W.

Diagrams

LAE66A3CB
LAE66A3CB
CTS Electronic Components

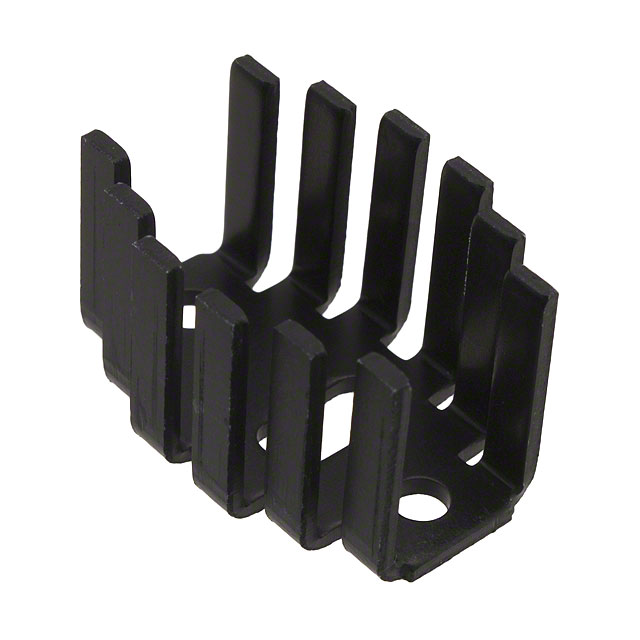

Heat Sinks DIM=1.31x.90x 0.75
